Honeycomb Paper Core Sleeve Making Machine

We are the leading and biggest professional China Paper Bubble Making Machine,Honeycomb Paper Making Machine,Honeycomb Paper Machine,Fanfold Paper Folding Machine,Paper Cushion Machine Manufacturer.

Description
Technical parameters

Application

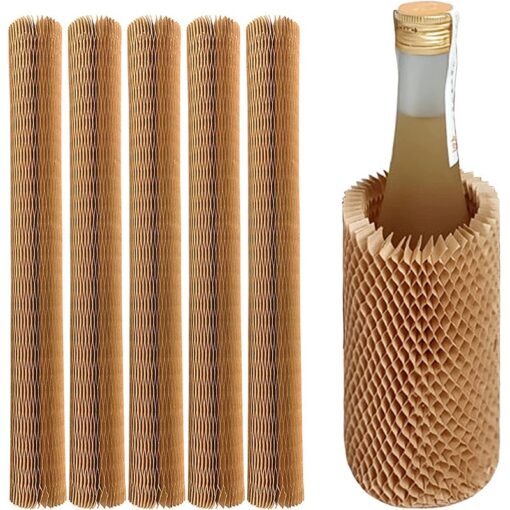

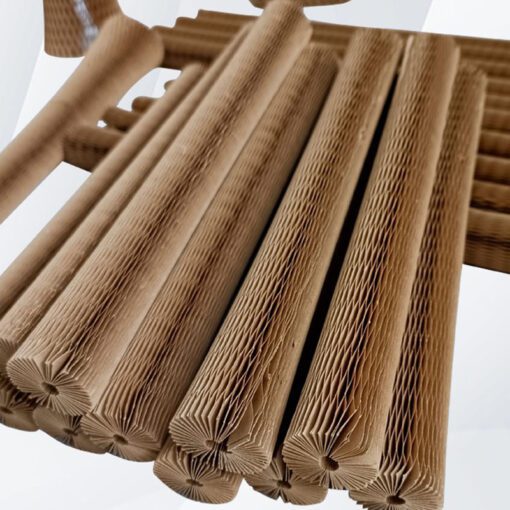

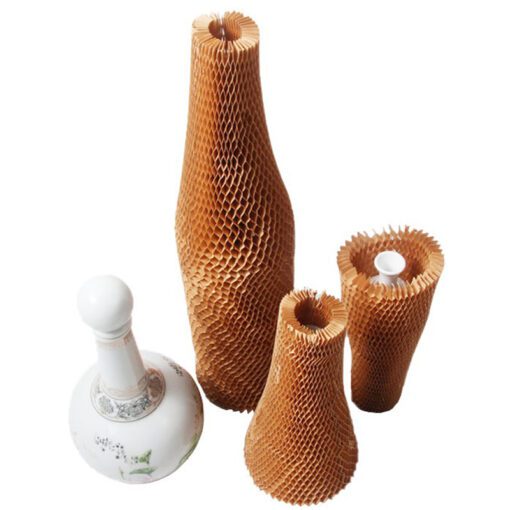

Honeycomb paper core sleeve making machine is eco-friendly and cost effective alternative for plastic bubble wrap cushioning. It is easy to open to provide cushion protect without surface scratch to the item packing.Finished products from this machine can be used to pack bottle, fruits, flowers, ceramics, glassware etc.

Technical parameters

Machine model	EM-PC900
Paper thickness	50～70g
Machine working speed	4pcs-12pcs/min(if finished length is 220mm,can do 3pcs by one time,so speed is 12pcs/min)
Feeding box	30-50pcs cores feeding/group
Paper core height	10-15mm
Paper core width	80-160 layers (10-20mm)
Paper core length	200-900mm (220mm,350mm,450mm most common),if do 220mm,can be 4 cores feeding by one time, if 350mm,can be 2 cores feeding by one time
Power	3kw
Machine size	15008001300mm(LxWxH)
Machine weight	500KG
Power supply	380V 3 Phase or as customer requirement
