High Speed Fanfold Kraft Paper Folding Machine Model 800

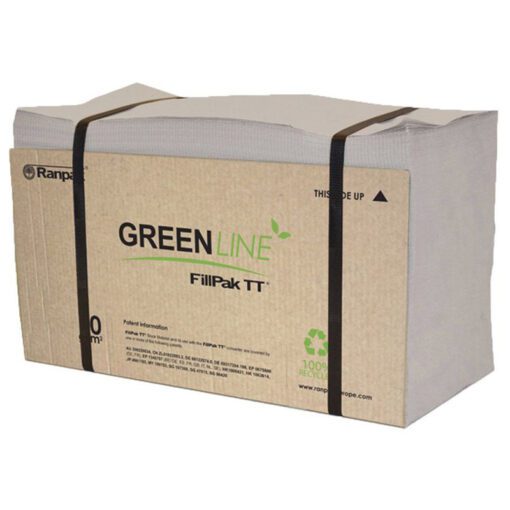

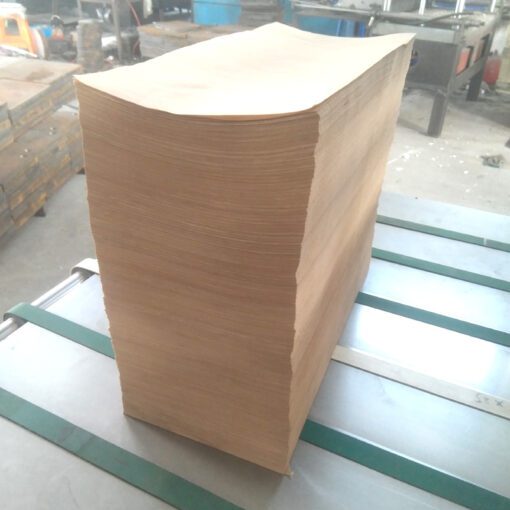

This high speed fanfold kraft paper folding machine is our newest design for making the kraft paper roll for paperEZ,Ranpak company.The kraft paper roll get perforated cutting and folding by our machine automatically and stack to a pile to be collected.

We are the leading and professional China high speed fanfold kraft paper folding machine,paper folding machine,paper fanfolding machine,zig-zag paper folding machine,fanfold paper folder manufacturer.



Application

This high speed fanfold kraft paper folding machine is our newest design for making the kraft paper roll for paperEZ,Ranpak company.The kraft paper roll get perforated cutting and folding by our machine automatically and stack to a pile to be collected.

Machine model SD-PF500B/PF800B
Max material width 470mm/780mm
Paper thickness 40-150gsm
Machine working speed 200m/min(model 800 150m/min)
Perforation and Folding length 8-15inch(Standard 11inch,need to change module)
Unwinding diameter 0-1200mm
Stacking system By conveyor
Unwinding type Automatic lifting system
Unwinding shaft 3” inflatable air shaft
Inverter and PLC Local brand
Touch screen Weinview brand
Motor Local brand
Machine size 3500*1200*1600mm(LxWxH)/3500*1500*1600mm
Machine power 3.5kw/5 KW
Machine weight 2000KG/2500KG
Power supply 380V 3 Phase



About Zig-zag kraft paper folding machine

Zig-zag kraft paper folding machines are an essential piece of equipment for businesses that need to fold large quantities of kraft paper quickly and efficiently. These machines are perfect for companies that manufacture packaging materials, as well as those that need to fold or crease kraft paper for other purposes.

So, what is a zig-zag kraft paper folding machine, and how does it work?

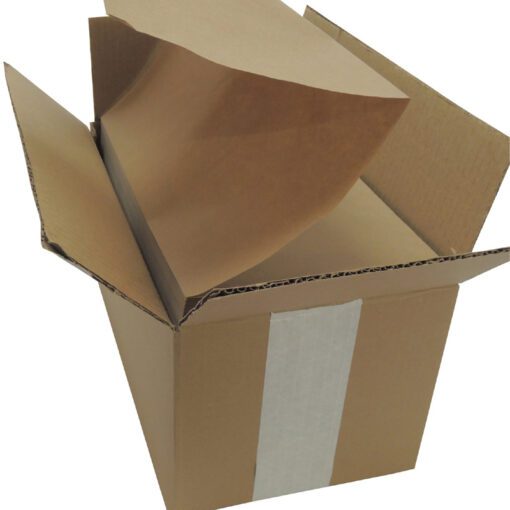

A zig-zag kraft paper folding machine is a piece of equipment that is used to fold kraft paper into a particular pattern. The machine uses a series of rollers and blades to fold the paper in a zig-zag pattern, which creates a pleated effect. This type of folding is commonly used in the manufacture of packaging materials, such as paper cuhsion, and can also be used to create decorative effects on paper crafts.

The machine works by feeding the kraft paper through a set of perforation blades and folding device, which fold the paper in a specific pattern. The machine can be adjusted to create different patterns and lengths, depending on the needs of the user. Once the paper has been folded, it is ready to be used for its intended purpose.

There are several benefits to using a zig-zag kraft paper folding machine. One of the most significant advantages is the speed and efficiency with which it can fold paper. This can save businesses a significant amount of time and money, as it eliminates the need for manual folding, which can be slow and labor-intensive.

Another benefit of using a zig-zag kraft paper folding machine is the consistency and accuracy of the folds. The machine ensures that each fold is made to the same specifications, which helps to create a uniform and professional-looking finished product.

In conclusion, a zig-zag kraft paper folding machine is an essential piece of equipment for businesses that need to fold large quantities of kraft paper quickly and efficiently. This type of machine can save businesses time and money, while also ensuring that the folds are consistent and accurate. If you are in the business of manufacturing packaging materials or need to fold kraft paper for other purposes, investing in a zig-zag kraft paper folding machine is a wise choice.
