Fully Automatic Kraft Honeycomb Paper Machine

We are the leading and professional manufacturer of paper cushion material machinery in China such as honeycomb paper making machine,cushion paper forming machine,honeycomb paper forming machine,fanfold paper folding machine,flame resistant filter paper making machine and paper bubble machine.



Description

This automatic honeycomb paper machine is our another new design accord to the customer requirement,the difference with our old version honeycomb paper making machine is the new machine has the automatic finished paper roll changing function inline,this machine has total 5 shafts in the paper loader to be used by machine.The advantage of such design is finished paper roll can be changed automatically,save time and labor.And compare to our another full automatic honeycomb paper forming machine,the cost also is better.By the way,this another full automatic machine has extra function of pulling finished shaft from the paper core and past the label.Means this design no need to change and feed new shaft by manual.This will be the newest generation version honeycomb paper machine.So currently we have total 3 version such mesh paper machine for customer to choose,different cost with different function.



Application

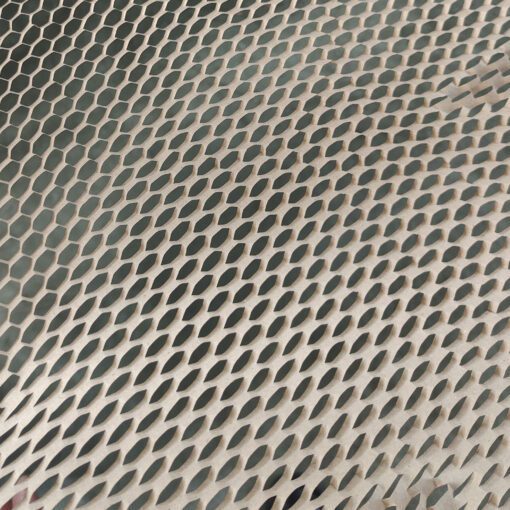

Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning.It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,ceramics,glassware,etc.



Machine features

  1. This honeycomb paper forming machine is suitable for die cutting honeycomb paper,wrapping paper, shock-absorbing paper, kraft paper,fish net paper from 70g to 100g.
  2. The unwinding,cutting and rewinding in one process.
  3. Main motor equipped with Inverter for speed regulation.
  4. Automatic ultrasonic web guide controller for unwinding.
  5. Tension controlled by magnetic powder brake and clutch.
  6. Automatic meter counting device,automatically stop after it reaches the length you set.
  7. Pneumatic cylinder to control the cutting mould up and down.
  8. Roll to sheet cutting is optional.(can match our paper wrapper)



Technical parameters

Machine model EM-PH600
Max material width 515mm (508mm/20inch and 380mm/15inch width most)
Machine working speed 0-200m/min adjustable
Unwinding diameter 0-1200mm
Rewinding diameter 0-300mm
Unwinding roll weight Max. 1 Ton
Unwinding shaft 3”inflatable air shaft
Rewinding shaft 1”/1.5”/2”/3” air shaft (choose either one,usually is 1.5”)
Machine size 4700*1500*1600mm(LxWxH)
Machine weight 2500KG
Power supply 380V 3 Phase or as customer requirement
